CNC LASER CUTTING SERVICE
High Precision · High Efficiency · Full Material Coverage
From prototype to mass production, customized laser cutting solutions
Cost-effective laser cutting service
LEIFENG offers customized laser cutting services, covering materials such as metal, plastic, rubber, foam, and wood. LEIFENG’s laser cutting services provide a cost-effective, on-demand customized solution for your manufacturing needs. Whether it’s custom prototypes, small-batch production, or mass production, we can meet your requirements.
Laser cutter we have TruFiber 4020
Cutting Capacity: Carbon steel: maximum cutting thickness up to 50mm (under 15kW power);
Stainless steel: maximum cutting thickness up to 30mm;
Aluminum alloy: maximum cutting thickness up to 25mm;
Other metals: supports highly reflective materials such as copper and brass (requires a dedicated cutting head).
Accuracy and Speed: Positioning accuracy: ±0.03mm/m;
Repeat positioning accuracy: ±0.02mm;

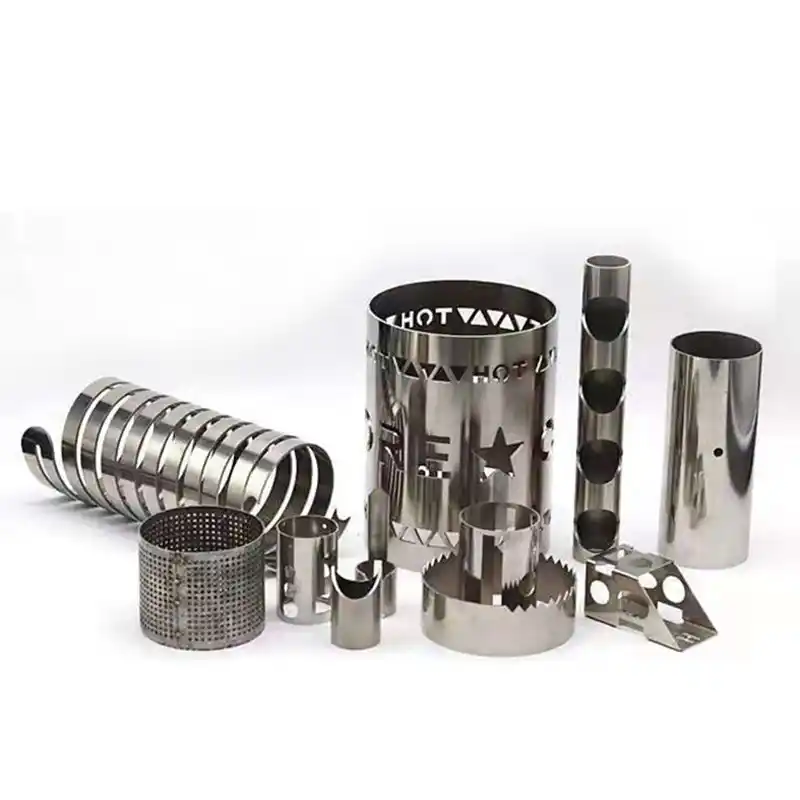

Metal Laser cutting service
LEIFENG provides high-quality metal cutting services, covering a variety of metal materials including steel, stainless steel, tool steel, spring steel, aluminum, copper, and titanium. We are equipped with both fiber laser cutting machines and CO₂ laser cutting machines, capable of cutting metal materials up to 100mm thick. Our laser cutting services cater to customers worldwide, and we accept both processing with customer-supplied materials and turnkey service (including both materials and processing).
Metal Laser Cutting Materials List
Below is a list of materials we commonly cut. For materials not on the list, we may also be able to provide a quotation.
1075 Spring Steel, annealed
1075 Spring Steel, Blue Tempered
1095 Spring Steel, annealed
1095 Spring Steel, blue tempered
4130 chrome-moly steel, annealed
Aluminum 2024-T3
Aluminum 5052 H32
Aluminum 6061 T6
Aluminum 7075 T6
Aluminum MIC6
AR400 Steel, hardened
AR500 Steel, hardened
Bearing Bronze 932 M07
Brass 260
Brass 353 H02
Brass 464 H01
Bronze 220 H02
Bronze 510 H08 (spring)
Carbon Fiber
Copper 101, H00 to H01
Copper 110, Annealed
Copper 110, H01
Copper 110, H02
Corten A588 (Weathered) Steel
Hot Rolled Steel 1045
Hot Rolled Steel A569/ASTM A1011
Nickel 200, annealed
Nickel 625, annealed
Pre-Anodized 6061-T6, Black
Silicon Bronze 655
Stainless Steel 17-4 PH, annealed
Stainless Steel 17-7 shim, hardened
Stainless Steel 301, spring temper
Stainless Steel 304
Stainless Steel 304 shim, hardened
Stainless Steel 304, #4 brushed
Stainless Steel 316
Stainless Steel 410, annealed
Stainless Steel 430, #3 brushed
Stainless Steel 440C
Stainless Steel CPM 154
Stainless Steel S30V, annealed
Steel 1008, zinc-galvanized
Steel 1018
Steel 4140, hardened
Steel 80CRV2
Steel A36
Steel A36, pickled and oiled
Steel A366/1008
Steel A572 Grade 50
Steel G90, galvanized
Titanium (Grade 2)
Titanium 6Al-4V (Grade 5)
Tool Steel D2, annealed
Tool Steel O1, annealed
Plastic Laser Cutting Material List
ABS, Black
ABS, White
Acetal, Black
Acetal, White
Acrylic, Clear
Acrylic, Colored
Buna-N Rubber, Adhesive-Backed, Black
Buna-N Rubber, Black
EPDM
EVA Foam, Black
EVA Foam, Blue
Extra Soft PU Foam, Adhesive Backed, Black
Extra Soft PU Foam, Black
Fiberglass
Flame-Retardant PU Air Filter Pad, Gray
Flame-Retardant Silicone Foam, Gray
Garolite G-10 (FR4), Black
Garolite G-11 (FR5), Green
Garolite LE (Phenolic), Brown
HDPE, White
High Temp Silicone Foam, Adhesive Backed, Red
High Temp Silicone Rubber, Adhesive-Backed, Red
High Temp Silicone Rubber, Red
Nylon 6/6, Black
Paper Fiber and Buna-N Blend, Gray
PETG Plastic, Clear
Polycarbonate, Clear
Polypropylene, White
PTFE Gasket Material
PTFE, White or Black
PVC, Gray
UHMW-PE, White
Acrylic Laser Cutting Service
We provide high-quality acrylic laser cutting services. We offer not only transparent acrylic materials but also a wide range of colored acrylic materials.
Wood Laser Cutting Service
Most natural solid woods and man-made wood panels are suitable for laser cutting; the key factors are the wood’s moisture content, resin content, and whether it contains impurities.
Types of wood suitable for laser cutting:
-Natural solid wood: Softwoods and hardwoods such as pine, birch, beech, maple, and cherry, as long as they are dry and free of obvious knots and metal impurities.
-Man-made wood panels: Plywood, medium-density fiberboard (MDF), and particleboard. Among them, MDF is a commonly used choice for laser cutting due to its uniform texture.
-Others: Bamboo, wood veneer, cork, etc., also have good cutting effects.
Alternatives to Laser Cutting
Alternative solutions to laser cutting for plate cutting include water jet cutting services and plasma cutting services. Laser cutting has limitations in terms of the thickness of the material being cut. Laser cutting can cut materials with a maximum thickness of 100mm. For materials with a thickness exceeding 100mm, please use water jet cutting and plasma cutting services.
Ready to get started on your laser cutting quote?
Customization available and design drawing by your demand available
The Advantages Of Laser Cutting
Durability
Laser cutting has a small heat-affected zone and smooth, flat cuts, which can reduce damage to material properties and stress concentration, making the workpiece more durable.
Scalability
All sheet metal parts can be custom-cut according to requirements, and laser cutting has lower costs. Depending on your needs, you can customize prototypes or carry out mass production.
Choice of Materials
Choose from a variety of materials, which cover a wide range of properties including strength, conductivity, weight, and corrosion resistance.
Laser Cut Metal General Tolerances
| Description | General Tolerance |
|---|---|
| General Tolerances | For full details on tolerances offered by LEIFENG's sheet cutting service, including edge to edge tolerance and taper, please consult our manufacturing standards. |
| Thickness Dimension | Thickness tolerances are determined by the material blank. |
| Minimum Recommend Part Size | 10mm |
| Minimum Feature Size | 2X material thickness with a minimum of 1.6mm |
| Kerf (slit size) | Approximately 0.5mm |
| Edge Condition | Laser cut parts will have a vertical striation on the cut face. |

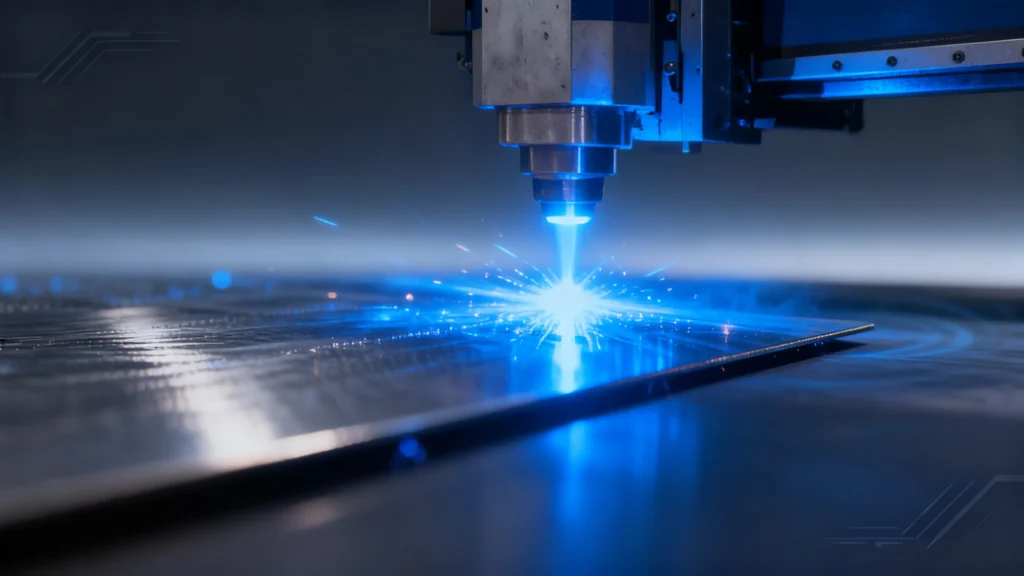

An Overview of Laser Cutting
Laser cutting is an advanced processing technology that uses a high-energy-density laser beam to cut materials.
Its core principle is as follows: A high-intensity laser is generated by a laser device, which is focused into an extremely small light spot (usually with a diameter at the micrometer level) through an optical path system, forming an extremely high energy density (up to 10⁶-10⁸ W/cm²). When it irradiates the material surface, it instantly heats the local area of the material to a molten, vaporized, or ablated state. At the same time, auxiliary gases (such as nitrogen and oxygen) are used to blow away the molten slag. Finally, precise cutting is completed by moving the laser head or workbench according to a preset path.
The notable characteristics of this technology are: smooth and flat cutting edges (with an accuracy of up to ±0.1mm), small heat-affected zone (reducing material deformation), high cutting speed, and adaptability to various materials such as metals (steel, aluminum, copper) and non-metals (acrylic, wood, fabric). It is widely used in fields such as sheet metal processing, automobile manufacturing, aerospace, electronic devices, and advertising decoration.
Advantages of Laser Cutting Services
-High Precision and Quality: The focused light spot is extremely small (micrometer-level), with cutting accuracy reaching ±0.1mm. The cut is smooth and flat with few burrs, reducing subsequent processes such as polishing;
-Small Heat-Affected Zone: Laser energy is concentrated, causing minimal thermal damage to the surrounding areas of the material, significantly reducing the risk of deformation, especially suitable for precision parts processing;
-Wide Material Adaptability: It can cut metals (steel, aluminum, copper, etc.) and non-metals (acrylic, wood, fabric, etc.), and can also efficiently process high-hardness and high-melting-point materials (such as titanium alloys);
-High Efficiency and Flexibility: Fast cutting speed (especially for thin plates), combined with numerical control programming, can quickly achieve complex pattern cutting without changing molds, suitable for small-batch customization, prototype production, and mass production with low setup costs;
-Strong Compatibility with Automation:It can be easily integrated with production lines, robots, etc., to achieve automated processing and improve production efficiency.
These characteristics make it a mainstream cutting technology in fields such as sheet metal processing, aerospace, and electronics.
Why us？
Full material coverage capability
It can not only perform high-efficiency cutting on metals such as carbon steel, stainless steel and aluminum alloy, but also process non-metallic materials like acrylic, wood and ceramics. Moreover, it supports “mixed nested cutting” for different materials, helping customers optimize the material utilization rate.
Small batches and customization
It not only supports small-batch trial production with a minimum order quantity of 1 unit, but also undertakes million-unit bulk orders. Furthermore, the cost for bulk orders is over 30% lower than that of similar services in Europe.
Authorized certification
The enterprise is certified to ISO 9001, ISO 14001, and IATF 16949 standards. Its cut parts can be directly used in fields with strict compliance requirements such as medical care and aerospace, and no additional testing is required when exported to Europe and North America.
OEM/ODM Service By Your Demand
Customization available and design drawing by your demand available
